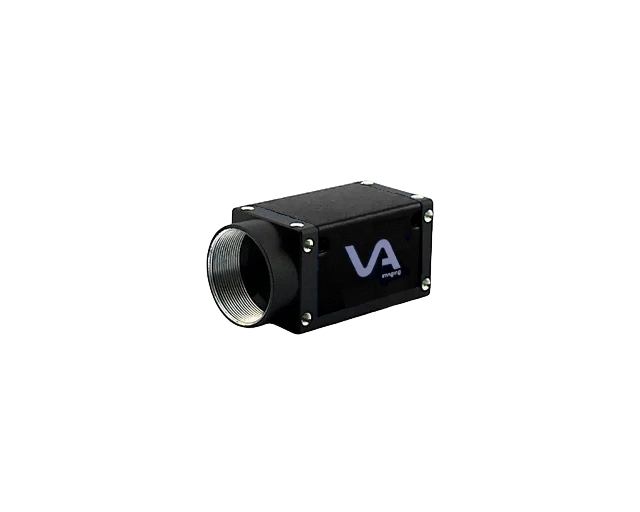

VA Imaging MER3-1220-24G3M-P-VA 1/1.7" Monochrome CMOS (Sony IMX226) Camera, 12 Megapixels, 4024 x 3036, 24 fps, Rolling Shutter, C-Mount, 2.5GigE Output

2.5GIGE VISION CAMERA IMX226

The MER3-1220-24G3M-P belongs to the MER3 2.5GigE lineup. This industrial GigE vision camera features a 2.5GigE connection, which is widely adopted in conventional machine vision systems. The MER3 series supports high-resolution global and rolling shutter sensors.
This particular model is suitable for applications that meet the following criteria:

- An industrial-grade camera
- Cable length up to 100 meters
- Cost-effective and straightforward cable setup
- Single cable connection for power and data
- Compact dimensions: 29x29x50.6mm

For additional information, please refer to the MER3 2.5GigE manual.

MONOCHROME INDUSTRIAL CAMERA

A monochrome camera, also called a black and white camera, provides benefits across various industrial applications. While color cameras dominate the security sector, monochrome cameras are preferred in industrial environments due to their higher light sensitivity, sharper image quality, and reduced data size compared to color cameras. These characteristics make them ideal for image analysis. By choosing the appropriate lighting wavelength and lens filter, a monochrome camera can maximize its performance, producing high-contrast, high-resolution images.

POE INDUSTRIAL CAMERA

Power over Ethernet (PoE) technology for GigE enables simultaneous transmission of power and data through a single Ethernet cable. This simplifies wiring and shortens installation time in setups that do not require hardware triggers or I/O connections. For applications needing I/O, powering the camera via an I/O connector is recommended. Using PoE results in higher power consumption and additional heat generation within the camera. PoE-enabled GigE cameras are physically larger than their non-PoE counterparts due to an extra PCB that isolates Ethernet power from the signal and steps down voltage. This additional hardware increases cost compared to non-PoE models. However, PoE offers the advantage of easier installation by reducing cable requirements.

MTBF, WARRANTY & PRODUCT LIFE CYCLE

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to stringent quality standards. The mean time between failures (MTBF) exceeds 400,000 hours (approximately 45 years of continuous operation). These industrial cameras carry TÜV Rheinland certification and include a 3-year warranty. Each camera model remains available for a minimum of 7 years following release, with many products supported for significantly longer periods. For further details on our product life cycle management, please see this article.
