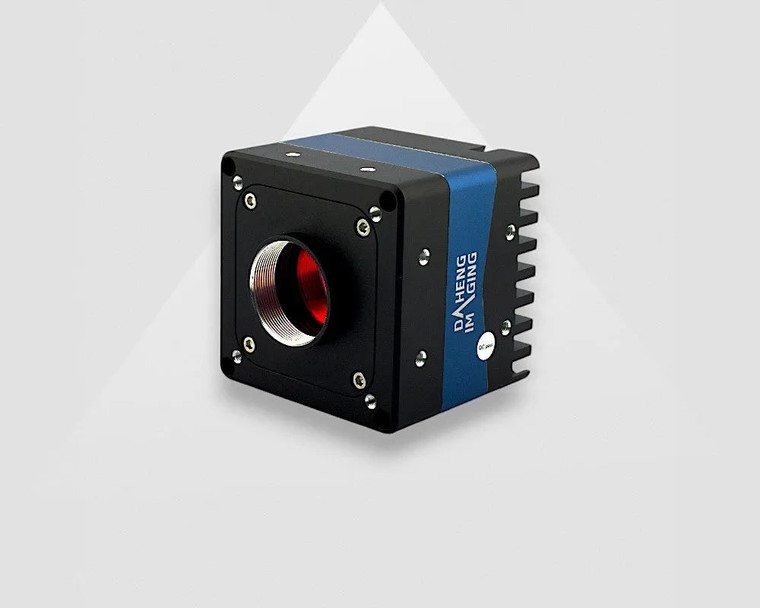

VA Imaging MARS-561-207GTC 1/2" Color CMOS (Gpixel GMAX2505) Camera, 5.5 Megapixels, 2992 x 2160, 207 fps, Global Shutter, C-Mount, 10GigE Output

10GIGE VISION CAMERA GMAX2505

The Mars 10GigE lineup features an industrial 10GigE camera equipped with a 10GigE connection. This interface is ideal for capturing high-resolution and/or high-speed images, especially when cable lengths exceed 5 meters. The 10GigE interface delivers speeds 10 times faster than standard GigE ethernet cameras and twice as fast as USB3.
This 10 GigE camera model is suitable if your application meets these criteria:

• A requirement for an industrial camera with high speed or high resolution
• Cable lengths up to 100 meters using cat6a or superior cables
• Cost-effective and straightforward cable installation
• Physical dimensions of 60x60x54mm

Operating this camera necessitates a 10GigE framegrabber. If your PC lacks a 10GigE port, we suggest the framegrabber VA-PCIe4-10GP-1. For additional information, please refer to the manual.

INDUSTRIAL 10GIGE CAMERA WITHOUT POE

The 10GigE camera series does NOT support Power over Ethernet (PoE). Please ensure to order an I/O cable compatible with MARS cameras to supply power to the device.

COLOR INDUSTRIAL CAMERA

This industrial color camera employs a Bayer filter array to generate color images. The RGB values for each pixel are derived by combining the pixel’s own value with those of adjacent pixels. This process results in images that are less sharp compared to monochrome cameras.
Because of the RGB filter applied to individual pixels, each pixel captures roughly 66% fewer photons under white light conditions than a monochrome sensor. Consequently, color cameras exhibit lower light sensitivity than monochrome variants. To mitigate this, the following approaches can be considered:

• Enhancing the illumination intensity
• Raising the gain setting
• Extending shutter speed or exposure duration
• Choosing a sensor with higher light sensitivity
• Using a lens designed for greater light sensitivity

Color industrial cameras are preferred in scenarios where capturing color details is essential.

MTBF, WARRANTY & PRODUCT LIFE CYCLE

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to rigorous quality standards. The mean time between failures (MTBF) exceeds 400,000 hours (equivalent to 45 years of continuous operation). These industrial cameras hold TÃœV Rheinland certification and include a 3-year warranty. Each camera model remains available for a minimum of 7 years following its market release, with many models supported for significantly longer periods. For further details on our product life cycle management, please consult this article.
