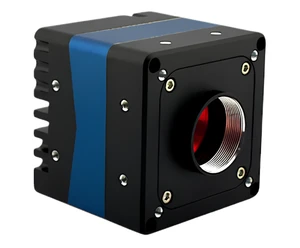

VA Imaging MARS-2621-42GTC 1.1" Color CMOS (Gpixel GMAX0505) Camera, 26.2 Megapixels, 5120 x 5120, 42 fps, Global Shutter, C-Mount, 10GigE Output

10GIGE VISION CAMERA GMAX0505

The Mars 10GigE lineup features an industrial-grade 10GigE vision camera equipped with a 10GigE connection. This interface excels in delivering high-resolution and/or rapid imaging performance, especially when cable runs exceed 5 meters. Operating at speeds 10 times that of standard GigE ethernet cameras and twice as fast as USB3, 10GigE offers superior data transfer.
This particular 10 GigE camera model suits your needs if your application meets these criteria:

• A requirement for an industrial camera with high speed or high resolution
• Capability to use cable lengths up to 100 meters with cat6a or better cables
• Cost-effective and straightforward cable installation
• Single-cable connection for camera operation
• Compact dimensions of 60x60x54mm

To operate this camera, a 10GigE framegrabber is necessary. If your PC lacks a 10GigE port, we suggest the VA-PCIe4-10GP-1 framegrabber. For further technical details, please refer to the manual.

INDUSTRIAL 10GIGE CAMERA WITHOUT POE

The 10GigE camera series does NOT include Power over Ethernet (PoE). Please ensure to purchase a compatible I/O cable designed for MARS cameras to supply power.

COLOR INDUSTRIAL CAMERA

An industrial color camera employs a Bayer filter array to generate color images. The RGB values for each pixel are computed by analyzing the pixel’s intensity along with the intensities of adjacent pixels. This process typically yields images that are less sharp compared to those from monochrome cameras.
Because of the RGB filter applied to each pixel, under white light conditions, each pixel captures roughly 66% fewer photons than a monochrome sensor, resulting in lower sensitivity to light. To address this limitation, the following strategies can be applied:

• Enhance illumination levels
• Adjust gain settings upward
• Extend shutter speed or exposure duration
• Choose a sensor with higher light sensitivity
• Opt for a lens with improved light-gathering capability

Color industrial cameras are selected when color data is critical for the application.

MTBF, WARRANTY & PRODUCT LIFE CYCLE

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to stringent quality controls. The mean time between failures (MTBF) exceeds 400,000 hours (equivalent to 45 years of continuous operation). These industrial cameras carry TÃœV Rheinland certification and come with a 3-year warranty. Each camera model remains available for a minimum of 7 years following its market release, with many models supported for significantly longer periods. For additional insights into our product life cycle management, please consult this article.
