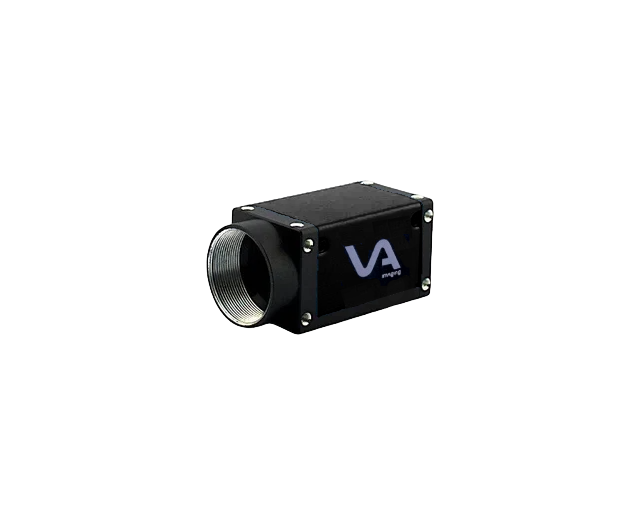

VA Imaging MER3-506-58G3C-P-VA 1/1.8" Color CMOS (Sony IMX547) Camera, 5 Megapixels, 2448 x 2048, 58 fps, Global Shutter, C-Mount, 2.5GigE Output

2.5GIGE VISION CAMERA IMX547

The MER3-506-58G3C-P belongs to the MER3 2.5GigE lineup. It is an industrial-grade GigE camera featuring a 2.5GigE connection. GigE remains the prevalent interface for cameras in standard machine vision setups. The MER3 series offers high-resolution options equipped with global shutter sensors.
This particular unit is suitable if your requirements include:

- An industrial-grade imaging device
- Cable runs up to 100 meters
- Cost-effective and straightforward cable installation
- Single-cable connectivity for data and power
- Physical dimensions of 29x29x50.6mm

For further technical details, please refer to the MER3 2.5GigE manual.

COLOR INDUSTRIAL CAMERA

This industrial color camera utilizes a Bayer filter array to generate color images. The RGB values for each pixel are derived by combining the pixel s own data with that of adjacent pixels. This process results in images that are generally less sharp compared to monochrome cameras.
Because of the RGB filter applied to each pixel, under white light conditions, each pixel captures roughly 66% fewer photons than a monochrome sensor. Consequently, color cameras exhibit lower light sensitivity than monochrome counterparts. To address this, the following adjustments can be made:

- Increase illumination intensity
- Raise the sensor gain
- Extend shutter speed or exposure duration
- Choose a sensor with higher light sensitivity
- Opt for a lens designed for better light transmission

Color industrial cameras are preferred in scenarios where capturing color information is essential.

POE INDUSTRIAL CAMERA

Power over Ethernet (PoE) technology for GigE enables simultaneous power delivery and data transfer via a single Ethernet cable. This simplifies wiring and reduces installation time in applications that do not require hardware triggering or I/O connections. For setups needing I/O, powering the camera through an I/O connector is recommended. Cameras powered by PoE consume more power and generate additional heat compared to those powered via I/O connectors. The PoE-enabled GigE camera has a larger form factor due to an extra PCB that isolates power from the Ethernet signal and steps down voltage. This additional hardware increases cost relative to non-PoE versions. The primary benefit of PoE is easier installation by minimizing cable requirements.

MTBF, WARRANTY & PRODUCT LIFE CYCLE

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to stringent quality standards. The mean time between failures (MTBF) exceeds 400,000 hours (equivalent to 45 years of continuous operation). These industrial cameras carry TÜV Rheinland certification and include a 3-year warranty. Following product launch, each camera model remains available for a minimum of 7 years, with many models supported for significantly longer periods. Learn more about our product life cycle management in this article.
