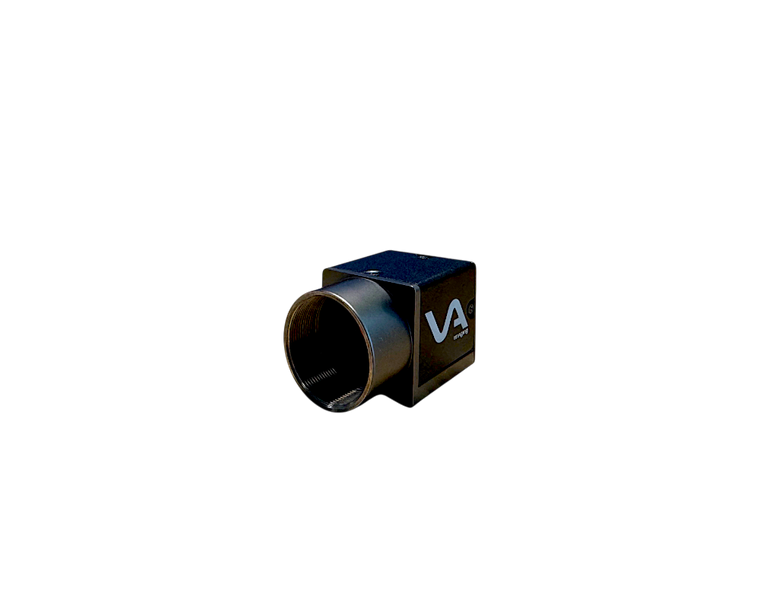

VA Imaging MER2-2000-6GC-VA 1" Color CMOS (Sony IMX183) Camera, 20 Megapixels, 5496 x 3672, 6 fps, Rolling Shutter, C-Mount, GigE Vision Output

GigE Vision Camera IMX183

The Mercury 2 GigE camera lineup features an industrial-grade vision camera equipped with a GigE interface. GigE remains the predominant connection standard for cameras in conventional machine vision setups. Currently, this camera model is offered exclusively without Power over Ethernet (PoE). The Mercury 2 series includes sophisticated capabilities such as decimation, binning, pixel skipping, image reversal, and digital shifting. This particular model suits applications that meet these criteria:
- Designed for industrial use
- Supports cable lengths up to 100 meters
- Cost-effective and straightforward cable installation
- Physical dimensions: 29x29x29mm
- Optional hardware trigger support

For additional technical details, please refer to the GigE vision camera manual.

MTBF, warranty & product life cycle

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to stringent quality standards. The mean time between failures (MTBF) exceeds 400,000 hours (equivalent to 45 years of continuous operation). These industrial cameras hold TÜV Rheinland certification and come with a 3-year warranty. Post-launch, each camera model remains available for a minimum of 7 years, with many models supported for considerably longer periods. For further insights on our product life cycle management, please review the linked article.

Color industrial camera

An industrial color camera employs a Bayer filter array to generate color images. The RGB color value for each pixel is computed by combining the pixel s own value with those of its adjacent pixels. This process typically results in images that are less sharp compared to monochrome cameras.
Because of the RGB filter overlay, each individual pixel, under white light conditions, captures roughly 66% fewer photons than a monochrome sensor. Consequently, color cameras have reduced light sensitivity relative to monochrome models. To address this, the following adjustments can be made: - Enhance illumination
- Raise the gain setting
- Extend shutter speed or exposure duration
- Choose a sensor with higher light sensitivity
- Opt for a lens with better light-gathering capability
Industrial color cameras are preferred in scenarios where capturing color information is essential.

Industrial GigE camera without PoE

Power for an industrial GigE camera without PoE is delivered via the I/O connector. This standard GigE camera variant is more affordable and produces less heat. Its design is more compact compared to PoE-enabled models due to fewer hardware components. Using an industrial GigE camera without PoE always requires connecting an I/O cable.
