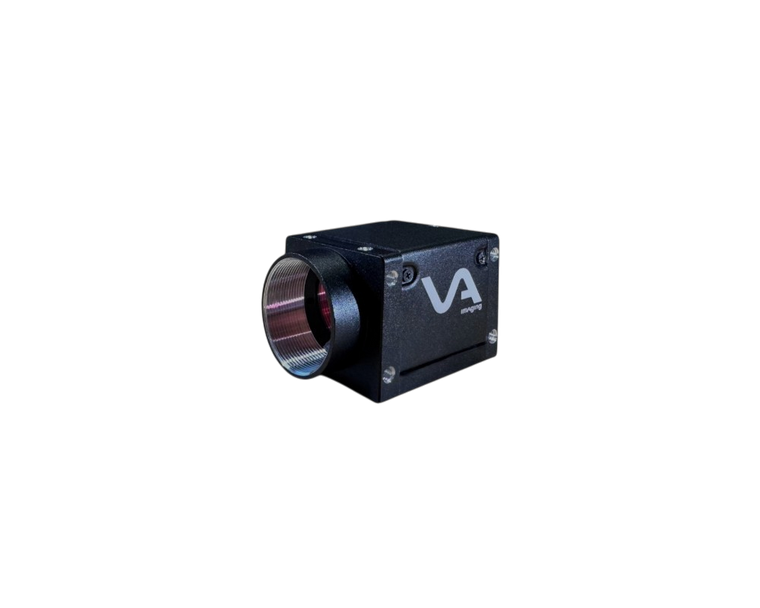

VA Imaging ME2P-530-72U3M-NIR-VA 1" NIR Monochrome CMOS (OnSemi PYTHON5000) Camera, 5 Megapixels, 2592 x 2048, 72 fps, Global Shutter, C-Mount, USB 3.0 Output

Python5000 USB3 Vision Camera

The Mercury 2 Pro USB3 Vision Camera lineup is designed as an industrial-grade vision camera, equipped with a USB3 Vision interface. This series incorporates high-resolution, low-noise global shutter sensors housed in a compact enclosure. USB3 serves as a high-speed connection standard for industrial vision cameras, making it suitable for capturing high-resolution and high-frame-rate images. The ME2P series offers advanced functionalities; for inquiries about specific capabilities or custom implementations, please reach out to us for verification. The ME2P USB3 Vision Color cameras include color correction features to enhance image fidelity.
The ME2P USB3 Vision Camera series is particularly suitable for applications with the following requirements:
- Compact industrial camera design
- Maximum cable length of 4.6 meters
- Cost-effective and straightforward cable installation
- Single-cable connectivity
- Hardware triggering and Digital I/O support
- Advanced image processing capabilities

For additional information, please refer to the ME2P USB3 Vision camera manual.

MTBF, Warranty & Product Lifecycle

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to stringent quality standards. The mean time between failures (MTBF) exceeds 400,000 hours (equivalent to 45 years of continuous operation). These industrial cameras carry TÜV Rheinland certification and include a 3-year warranty. Each camera model remains available for a minimum of 7 years post-launch, with many models supported for even longer periods. For further details on our product lifecycle management, please consult the linked article.

Monochrome Industrial Camera

A monochrome camera, also known as a black and white camera, provides benefits across numerous applications. While color cameras dominate markets like security and telecommunications, industrial sectors leverage the advantages of monochrome sensors. These cameras exhibit higher light sensitivity, deliver sharper images, and generate less data compared to color cameras, facilitating more efficient image processing. By selecting appropriate illumination wavelengths and lens filters, monochrome cameras can maximize their performance characteristics, producing images with enhanced contrast and resolution.

NIR

NIR cameras utilize monochrome sensors optimized for the Near Infrared spectrum, covering wavelengths from 800 to 1000 nm. Typical IR LEDs operate at 850 nm or 930 nm. The photon-sensitive regions within NIR camera pixels are deeper than those in standard monochrome cameras, enabling improved photon capture at longer wavelengths (800-1000 nm). NIR sensors generally incur higher costs than standard monochrome cameras. These cameras are well-suited for low-light environments such as intelligent transportation systems (ITS) and medical imaging.

Advanced Vision Camera Features

The ME2P USB3 Vision camera series incorporates both basic and sophisticated features, including:
- Configurable ROI allowing increased frame rates via partial scanning
- Programmable gain, exposure, and white balance (white balance applicable only to color models)
- Support for auto gain, auto exposure, and auto white balance (auto white balance exclusive to color models)
- Four acquisition modes: Single frame, continuous, software-triggered, and external trigger acquisition
- Trigger options: Frame Start and Frame Burst Start
- Color correction support to enhance image quality (color models only)
- Exposure delay to mitigate strobe timing effects
- Compliance with GenICam and GigE Vision standards, compatible with numerous third-party software platforms such as HALCON and LabVIEW
- Optimized software suite designed to reduce CPU load on 32/64-bit Windows hosts
- Comprehensive SDK with multiple samples for seamless integration across various programming environments
- Certifications and standards: CE, RoHS, GenICam, USB3 Vision

These extensive features position the ME2P USB3 Vision camera series as an excellent solution for demanding image processing tasks.
