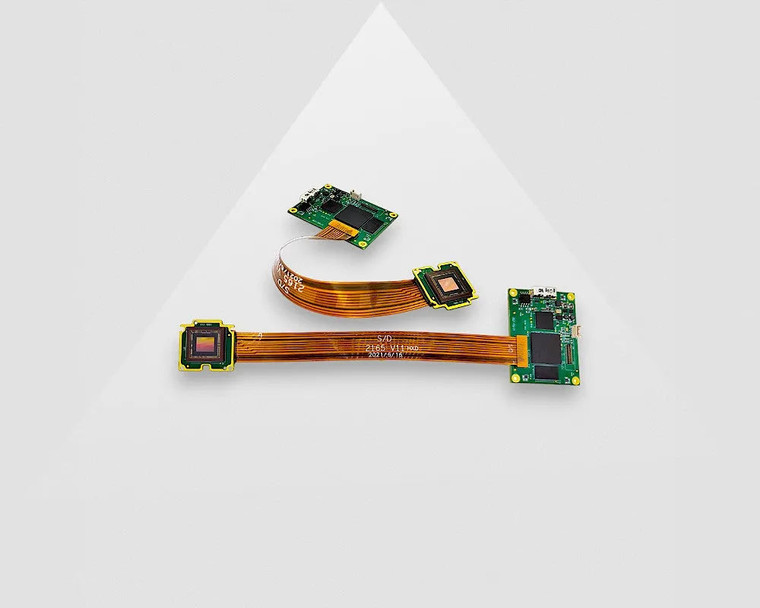

VA Imaging VEN-302-56U3M-M06 1/1.8" Monochrome CMOS (Sony IMX265) Boardlevel Camera, PCB with No Housing, 3 Megapixels, 2048 x 1536, 56 fps, Global Shutter, No Mount, USB 3.0 Output

IMX265 USB3 Vision Camera

The Venus USB3.0 camera lineup consists of industrial boardlevel cameras equipped with USB3.0 connectivity. USB3.0 offers an ideal interface for cameras requiring both high resolution and rapid frame rates. Additionally, this interface is well suited for embedded systems such as Raspberry Pi (version 4 or newer) and NVIDIA platforms.

This particular model is suitable if your application meets the following criteria:
- Industrial boardlevel camera requirement
- Cable length up to 4.5 meters maximum
- Single-cable connection for device interface
- Compatible with PCs and embedded systems using ARM V7 & ARM V8 architectures
- Supports hardware triggering

For further information, please refer to the user manual available here.

Customizable Housing Variants

You have the option to choose the housing that best suits your needs. The Venus USB3.0 camera series is offered in these configurations:
No housing

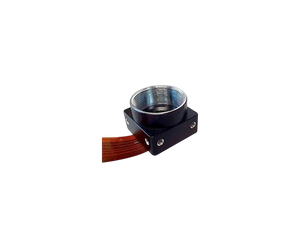

C-Mount: 35x35x20.8mm | 34 grams

If you intend to use an M12 lens, the C-mount version can be paired with our C-to-M12 adapter, which simplifies the attachment of M12 lenses.

Warranty and Product Longevity

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to stringent quality standards. These cameras carry TÃœV Rheinland certification and include a three-year warranty. Each camera model remains available for a minimum of seven years following its market release, with many models supported for significantly longer periods. For additional details on our product life cycle management, please consult this article.

Monochrome Camera Advantages

Monochrome cameras, also referred to as black and white cameras, offer specific benefits across numerous industrial applications. While color cameras dominate sectors like security and telecommunications, industrial environments often prefer monochrome sensors. These cameras exhibit high sensitivity to light, deliver crisp images, and generate less data compared to color sensors, facilitating efficient image processing. By carefully selecting the lighting wavelength and lens filters, product features can be emphasized, enabling the capture of high-contrast, high-resolution images using monochrome cameras.
