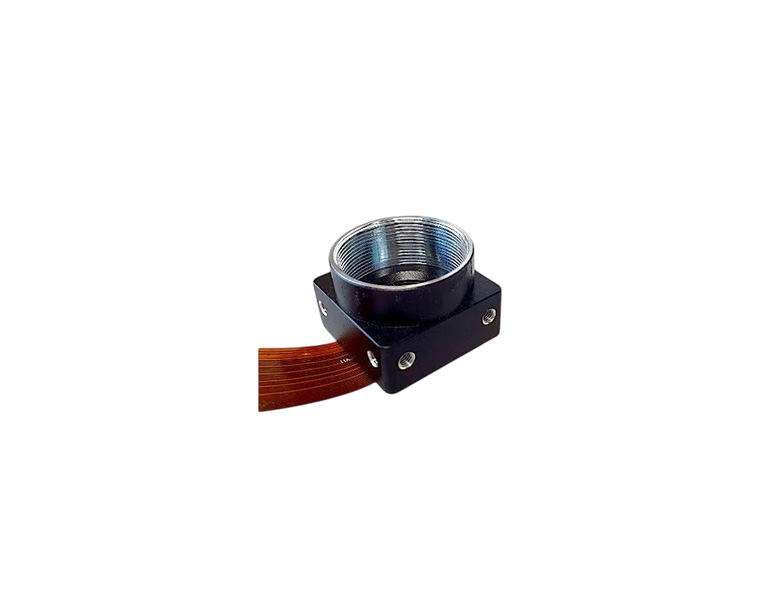

VA Imaging VEN-302-56U3M 1/1.8" Monochrome CMOS (Sony IMX265) Boardlevel Camera, PCB with No Housing, 3 Megapixels, 2048 x 1536, 56 fps, Global Shutter, C-Mount, USB 3.0 Output

USB3 Vision Camera IMX265

The Venus USB3.0 camera lineup represents an industrial boardlevel camera series featuring a USB3.0 connection. This USB3.0 interface is ideal for cameras requiring high resolution and rapid frame rates. Additionally, it integrates well with embedded systems such as Raspberry Pi (version 4 or newer) and NVIDIA platforms.

This particular model suits your needs if your application meets these criteria:
- Industrial boardlevel camera requirement
- Cable length limited to 4.5 meters maximum
- Single-cable connectivity for device connection
- Compatibility with PCs and embedded platforms including ARM V7 & ARM V8
- Support for hardware triggering

For further information, please refer to the user manual.

Flexible housing options

You have the option to choose a housing that matches your specifications. The Venus USB3.0 cameras come in the following configurations:
Without housing
C-Mount: 35x35x20.8mm | 34 grams

If you intend to use an M12 lens, the C-mount version can be combined with our C-to-M12 adapter, which facilitates secure mounting of M12 lenses.

Warranty & Product Life Cycle

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to stringent quality standards. These cameras are TÜV Rheinland certified and come with a 3-year warranty. Each camera model remains available for a minimum of 7 years following its market release, with many models supported for significantly longer periods. For additional details on our product life cycle management, please consult this article.

Monochrome Camera

A monochrome or black and white camera provides benefits across numerous applications. While color cameras dominate sectors like security and telephony, the industrial field takes advantage of monochrome cameras strengths. These cameras offer heightened light sensitivity, deliver crisp images, and generate less data than color cameras. This makes them particularly suitable for image processing tasks. By choosing the appropriate lighting wavelength and lens filter, specific product features can be emphasized, enabling the capture of high-contrast, high-resolution images with monochrome cameras.
