VA Imaging VEN-134-90U3M-D-NIR 1/2" NIR Mono CMOS (OnSemi PYTHON 1300) Dual Head Camera, 1.3 Megapixels, 1280x1024, 90fps, Global Shutter, No Mount, USB 3.0 Output

Name: VA Imaging VEN-134-90U3M-D-NIR 1/2" NIR Mono CMOS (OnSemi PYTHON 1300) Dual Head Camera, 1.3 Megapixels, 1280x1024, 90fps, Global Shutter, No Mount, USB 3.0 Output
SKU: VAI VEN-134-90U3M-D-NIR
Price: 847 USD
Availability: InStock

SKU:

VAI VEN-134-90U3M-D-NIR

Availability:

Typically 5-7 days

$847.00

Current Stock:

Quantity:

Adding to cart… The item has been added

Ultra-compact and highly adaptable design
1/2" global shutter CMOS sensor
Fully compatible with GenICam and USB3.0 Vision standards
USB 3.0 interface
1.3-megapixel resolution
Dual sensor board configuration
Cost-effective solution

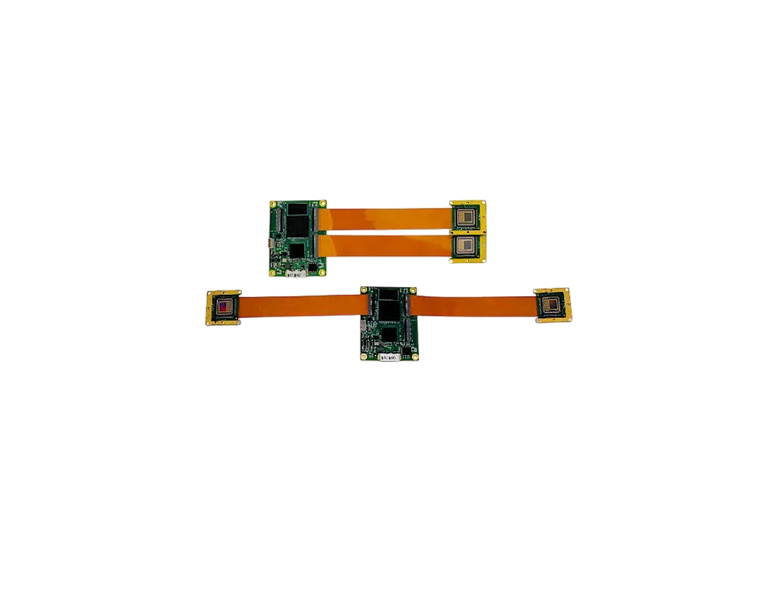

The VEN-134-90U3M-D is DAHENG s first board-level camera, featuring a monochrome USB3.0 Vision interface and two Onsemi PYTHON 1300 CMOS sensors. The main board includes three connection ports, and each sensor board can be connected to any of these ports via an FPC cable, providing flexible installation options for a wide range of applications. The camera is powered directly through the USB3.0 interface and offers strong performance at a very competitive price point. This board-level camera is specifically designed for binocular vision systems such as handheld and desktop 3D scanners.

Mini USB3.0 interface supporting 8-bit and 10-bit monochrome output
Configurable AOI with higher frame rates using partial scan
Programmable gain and exposure
Adjustable URB settings
Software reset capability
User-defined settings storage
Supports hot-plugging
FPC cables can be routed from either side or the same side
Compatible with embedded systems including Linux, Android, and NVIDIA Jetson TX1
Supports hardware and software triggering
FPC cable length can be extended up to 460 mm
GenICam and USB3.0 Vision compliant, compatible with third-party software such as HALCON and LabVIEW
A PC with an Intel Core 2 Duo 2.4 GHz processor or higher and at least 2 GB RAM is recommended
Free SDK and sample code for various development platforms
Certifications: CE, RoHS, GenICam, USB3.0 Vision

Please note that this OEM product may require a longer lead time compared to our standard items. We recommend checking availability in advance.
