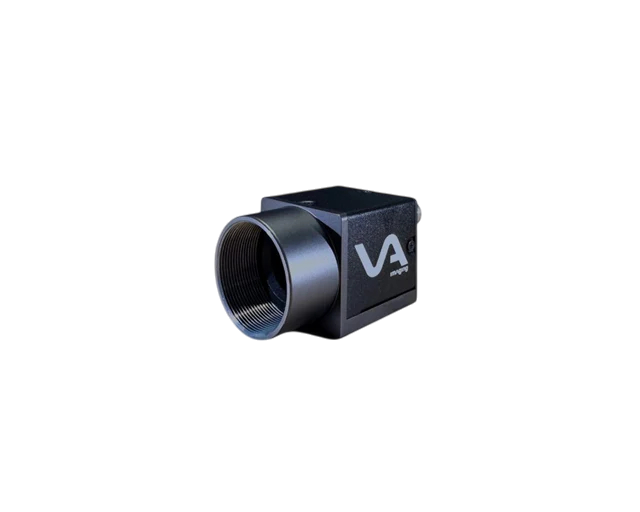

VA Imaging MER2-630-60U3M-VA 1/1.8" Mono CMOS (Sony IMX178) Camera, 6 Megapixels, 3088 x 2064, 60 fps, Rolling Shutter, C-Mount, USB 3.0 Output

Industrial USB 3.0 Vision camera IMX178

The Mercury2 USB3.0 camera is designed as an industrial vision device featuring a USB 3.0 interface. USB 3.0 provides a suitable connection for cameras requiring both high resolution and rapid data transfer rates. This interface works well with embedded systems such as Raspberry Pi (version 4 or newer), NVIDIA platforms, as well as conventional PC architectures.
This industrial vision camera model is ideal if your application meets the following criteria:
- Industrial-grade camera requirements
- Cable length up to 4.5 meters (extendable to 10 meters using optical USB3 cable)
- Single-cable connection for device interface
- Compact size measuring 29x29x29mm
- Compatibility with x86 computers and embedded platforms including ARM V7 & ARM V8
- Support for hardware triggering (requires I/O cable)

For additional information about our industrial USB 3.0 vision cameras, please refer to our manual.

MTBF, warranty & product life cycle

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to stringent quality standards. The mean time between failures (MTBF) exceeds 400,000 hours (equivalent to 45 years of continuous operation). These industrial cameras hold TÜV Rheinland certification and come with a 3-year warranty. Each camera model remains available for a minimum of 7 years following its market launch, often extending beyond that timeframe. For more details on our product life cycle management, please see this article.

Industrial monochrome / black&white camera

A monochrome camera, also referred to as a black and white camera, offers distinct benefits across various industrial applications. While color cameras dominate markets like security and telecommunications, industrial sectors favor monochrome cameras for their superior performance. Black and white sensors are up to three times more sensitive to light, deliver sharper images, and reduce data volume compared to color cameras. These characteristics enhance image processing efficiency. By choosing appropriate colored illumination and lens filters, additional image contrast can be achieved. This industrial monochrome camera produces images with excellent contrast and high resolution.

I/O port for hardwaretrigger, strobecontrol or PLC communication

The USB camera s I/O interface utilizes an 8-pin HR25 Hirose connector, a standard in industrial machine vision. This camera includes an input for hardware triggering to initiate image capture. Its output can activate external devices such as industrial machine vision lighting. Additionally, the camera features two programmable GPIOs (General Purpose Input/Output) accessible via our SDK. Electrical wiring diagrams for the I/O connector are included in the manual. You may also consult our article: hardware triggering multiple industrial cameras.

If the I/O port is not required, the camera can be ordered without it. For large volume orders, this option reduces the unit cost by 10. The minimum order quantity for USB3 industrial cameras without I/O is 10 units. To place an order for the USB3 camera without I/O, please contact us.
