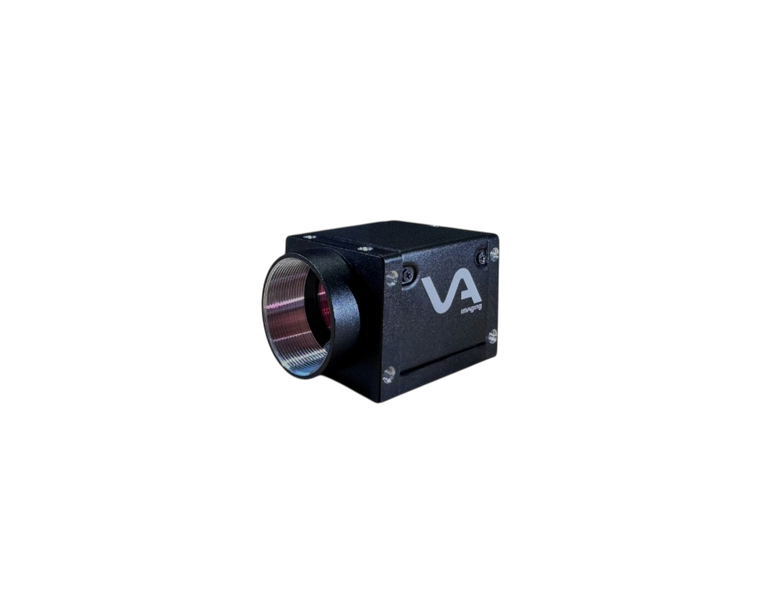

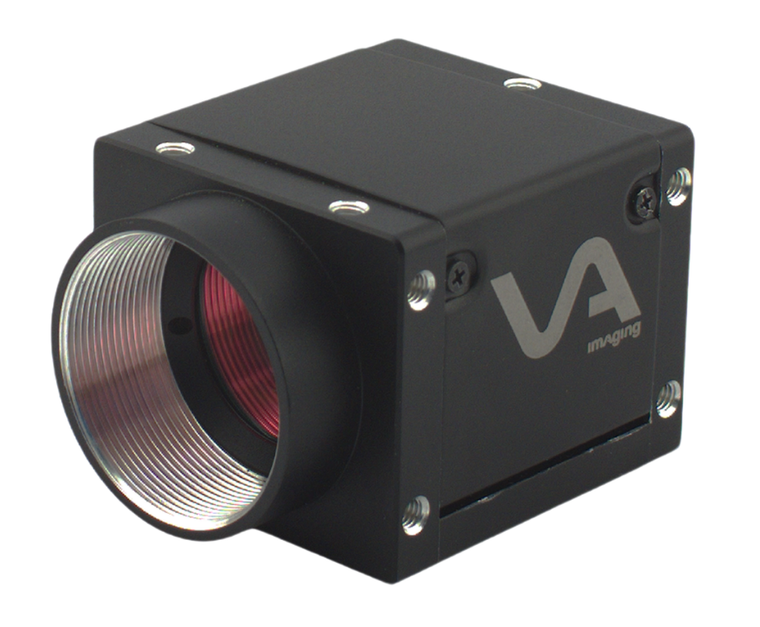

VA Imaging ME2P-1231-32U3M-VA 1.1" Monochrome CMOS (Sony IMX253) Camera, 12 Megapixels, 4096 x 3000, 32 fps, Global Shutter, C-Mount, USB 3.0 Output

IMX253 USB3 Vision Camera

The Mercury 2 Pro USB3 Vision Camera lineup comprises industrial-grade vision cameras equipped with a USB3 Vision interface. This series integrates high-resolution, low-noise global shutter sensors within a compact enclosure. USB3 provides a high-speed connection optimized for industrial vision cameras, enabling efficient capture of high-resolution, high-frame-rate images. The ME2P series includes sophisticated functionalities. For inquiries about specific advanced features, please reach out so we can verify availability or potential implementation. The ME2P USB3 Vision Color cameras include color correction capabilities to enhance image fidelity.
The ME2P USB3 Vision Camera series is suitable for applications requiring:
- A compact industrial camera design
- Cable lengths up to 4.6 meters
- Cost-effective and straightforward cable installation
- Single-cable device connectivity
- Hardware triggering and digital I/O support
- Advanced image processing options

For additional information, please refer to the ME2P USB3 Vision camera manual.

MTBF, Warranty & Product Lifecycle

Daheng Imaging manufactures over 100,000 industrial cameras annually, adhering to stringent quality standards. The mean time between failures (MTBF) exceeds 400,000 hours (equivalent to 45 years of continuous operation). These industrial cameras carry TÜV Rheinland certification and include a 3-year warranty. Each camera model remains available for a minimum of 7 years post-launch, with many models supported for significantly longer periods. For further details on our product lifecycle management, please consult this article.

Monochrome Industrial Camera

Monochrome cameras, also referred to as black and white cameras, provide distinct advantages across multiple applications. While color cameras dominate sectors like security and telecommunications, industrial environments benefit from the attributes of monochrome sensors. These cameras offer heightened light sensitivity, deliver sharp imagery, and reduce data volume compared to color cameras, facilitating more efficient image processing. By selecting appropriate illumination wavelengths and lens filters, monochrome cameras can leverage their inherent characteristics to produce images with strong contrast and high resolution.

Advanced Vision Camera Features

The ME2P USB3 Vision camera series incorporates both fundamental and advanced capabilities, including:
- Configurable ROI to boost frame rates via partial scanning
- Programmable gain, exposure, and white balance (white balance applicable to color models only)
- Support for auto gain, auto exposure, and auto white balance (auto white balance for color models only)
- Four acquisition modes: single frame, continuous, software trigger, and external trigger
- Trigger options: Frame Start and Frame Burst Start
- Color correction support to enhance image quality (color models only)
- Exposure delay feature to minimize strobe delay effects
- Compatibility with GenICam and GigE Vision , enabling integration with third-party software such as HALCON and LabVIEW
- Optimized software suite reducing CPU load on 32/64-bit Windows hosts
- Multiple sample applications and an easy-to-integrate SDK supporting various programming environments
- Compliance with CE, RoHS, GenICam, and USB3 Vision standards

These comprehensive features make the ME2P USB3 Vision camera series an excellent solution for demanding image processing tasks.
