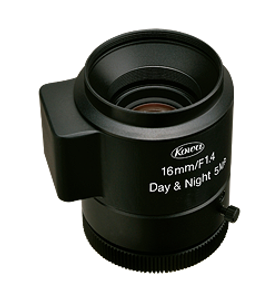

Kowa LM16JC5M-IR 2/3" 16mm F1.4 Manual Iris C-Mount Lens, 5 Megapixel Rated, IR Corrected

SKU:
KOW LM16JC5M-IR
Availability:
Typically 3-5 days
$436.00
Current Stock:
Product Information LM16JC5M-IR | 2/3" 16mm 5MP IR corrected
  • Up to 5 Megapixel
  • Metal mount
  • IR-corrected
  • Metal housing



Technical Details

Focal Length (mm): 16
Sensor Size: 2/3"
Pixel Size (µm): 3,5
Mount: C-mount
Iris Control: Manual
Iris Range (F-Stop): 1,4 - 16
Lens Type: Fixed Focal Lens
Wavelength Range: VIS (380nm - 780nm), IR-corrected (Day & Night)
Focusing Range (m): 0,3 - ∞
Focus Control: Manual
Shooting range at MOD, horizontal (mm): 171,4
Shooting range at MOD, vertical (mm): 127,4
Resolution, Center: 160
Resolution, Corner: 125
Distortion (TV) (%): -0,8
Back focus in air (mm): 14,7
Filter Size (mm): M27 x P0,5
Size (mm): Ø34 X 44,5
Weight (g): 100
Temperature Range (): -10°C - +50°C
Series: JC5M-IR
Application: ITS/Verkehrsüberwachung







Downloads:






Download Datasheet









← Back to Kowa Lens Page

Lens Type:
16mm
Format:
2/3"
Megapixel Rating:
5 MP
Iris Type:
Manual
Mount Type:
C Mount
-->
