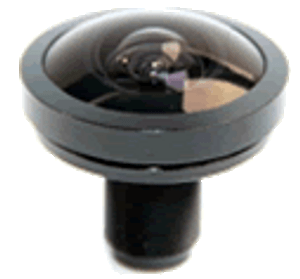

  • Azure Photonics AZURE-IR01020B10M 1/3.6" 1.05mm (Fisheye) F2.0 Fixed Iris M12 (S-Mount) Lens, IR Corrected, 10 Megapixel Rated

    Model #
    AZURE-IR01020B10M
    Availability
    Typically 7-10 days
    Shipping
    Calculated at checkout
    $160.00
    Quantity


    Technical Information

    Azure Photonics AZURE-IR01020B10M 1/3.6" 1.05mm (Fisheye) F2.0 Fixed Iris M12 (S-Mount) Lens, IR Corrected, 10 Megapixel Rated



    Format: 1/3.6"

    Focal Length: 1.05mm

    Aperture: F2.0

    Iris Type: Fixed

    Mount: M12 (S-Mount)



    SPECIFICATIONS

    Resolution 10.0Mega-pixel
    Format  1/3.6
    Mount M12x 0.5
    Focal length 1.05mm
    Iris Type Fixed
    F/No 2.8
    Back Focus 3.5mm
    Angle of View(D×V×H) 245°×245°×245°
    Working Distance 52.5mm
    Focus Extend 0.2m~∞
    F-Theta Distortion <-1.6%
    Weight 26g
    Dimension ¢35.6x37.4



    Downloads:




    AZURE-IR01020B10M Specification Sheet (PDF)
