Format: 1"
Focal Length: 25 mm
Aperture: F1.4–16
Iris Type: Manual
Mount: C-Mount
Focal Length (f) | 25mm (25.42) |
Maximum Aperture Ratio | 1:1.4 (1.44) |
F/# | 1.4 ~ 16 |
Angle of view (1") | 21.5° x 28.5° (Diagonal: 35.3°) |
M.O.D | 300mm |
Flange back | 17.526mm |
Operation of Iris & Focus | Manual |
Mount | C-mount |
Filter Thread | M30.5 P=0.5 |
Wavelength | Visible |
TV distortion (1") | -0.60% |
Sensor size (max.) | 1" |
Weight (approx.) | 90 g |
Dimension | Ø38 (MAX) x L = 33.5mm |
Downloads:

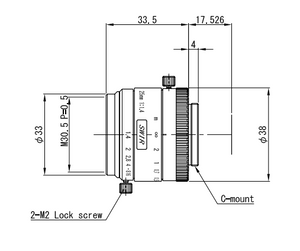

VS-2514H1 Technical Drawing (PDF)
