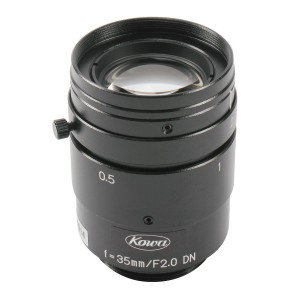

Kowa LM35JCM 2/3" 35mm F2.0 Manual Iris C-Mount Lens, 2 Megapixel Rated

SKU:
KOW LM35JCM
Availability:
Typically 2-3 days
$186.00
Current Stock:

Format: 2/3"

Focal Length:35mm

Aperture: F2.0

Iris Type: Manual Iris

Mount: C-Mount



Additional Information

2 Megapixel Rated, Low Distortion.



Focal Length (mm) 35
Lens Type Fixed
Image Size (mm) 2/3" (Φ11)
Iris Range (F-stop) F2.0 ~ F16
Focusing Range (m) 0.2 ~ ∞
Iris Control Manual
Focus Control Manual
Shooting Range at M.O.D. (mm) 47.9(H) x 35.8(V)
Angle of View 2/3" (°) 14.4 x 10.8
Angle of View 1/2" (°) 10.5 x 7.9
Angle of View 1/3" (°) 7.9 x 5.9
Resolution (Center, Corner) 120lp/mm, 100 lp/mm
TV Distortion (%) -0.2
Back Focus in Air (mm) 20.1
Mount C--mount
Filter Thread Size (mm) M27 x P0.5
Minimum Focus Distance (m) 0.2
Flange Back in Air (mm) 17.526
Front/Rear Effective DIA (mm) Φ21.5, Φ11.7
Exit Pupil (mm) -38.7
Size (mm) Φ34 x 36.5
Weight (g) 89
Temperature Range (°C) -10 ~ +45
