VS Technology VS-MCA35 2/3" 35mm F1.9 Fixed Iris & Locking Manual Focus C-Mount Lens, 3 Megapixel Rated, Low Distortion, Vibration Resistant

SKU:
VST VS-MCA35
Availability:
Typically 2-3 Weeks Lead-Time
Contact for quote
Current Stock:

VS Technology VS-MCA35  -  Vibration Resistant Distortionless Macro Lenses

NOTE: Lens can be "Special Ordered" fron factory with either F5.6 or F8.0 fixed aparture setting. Standard is F2.0.

Format: 2/3"

Focal Length: 35 mm

Aperture: F1.9

Iris Type: Manual Focus

Mount: C-Mount

Other Information

The VS-MCA series is especially designed to stay in focus regardless of vibration or shock. With a fixed iris and a screw lock mechanism it is able to not only deliver a high quality image, but also maintain it though out the vision systems use.



Model

VS-MCA35

Focal Length(mm)

35

Optical mag. range

0.26x0.65x

WD(mm)

163.583.1

Working F/#

2.39-

TV Distortion

-0.03%

Sensor Size (max.)

2/3”

Note: Available with MC Focus locking system, FNO (Iris Open) 5 .6 & 8






The hexagonal body of the lens makes it easy for anyone to correctly lock the lens into a camera with the use of a standard wrench or torque wrench. With a torque wrench it is possible to precisely tighten the lens to a camera with a specific amount of torque. It is then possible to replicate the same exact tightness in other vision systems using the VS-MCA lens series.

Downloads:


VS-MCA35 SpecSheet (PDF)

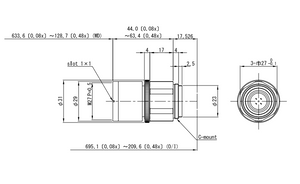

VS-MCA35 Technical Drawing (PDF)



← Back to VS Technology Lens Page

-->
