VS Technology VS-LDA6.5 1/2" 6.5mm F2.2 Manual Iris & Focus Distortionless Macro C-Mount Lens, 3 Megapixel Rated

SKU:
VS-LDA6.5
Availability:
Typically 2-4 days
Contact for quote
Current Stock:

VS Technology VS-LDA6.5 VS Technology 1/2" 6.5mm F2.2 Manual Iris & Focus Distortionless Macro C-Mount Lens, 3 Megapixel Rated



Format: 1/2"

Focal Length: 6.5 mm

Aperture: F2.2

Iris Type: Manual

Mount: C-Mount

Other Information:

The VS-LDA series generates a low distortion image, even when using extension tubes, by using a large number of lens shifts. Its design allows for the support of a wide range of magnification, WD, and DOF.



  • 1/2" - 2/3" sensor support
  • 10 models available
  • Focal length 4 - 75mm
  • Distortionless
  • Reduced Shading

Model

VS-LDA6.5

Focal Length(mm)

6.5

Optical mag. range

(∞) (∞) 0.01x - 0.06x

WD(mm)

653.2 - 95.2

Working F/#

2.3

TV Distortion

0.16% -0.18%

Sensor Size (max.)

1/2”



Downloads:


VS-LDA6.5 SpecSheet (PDF)

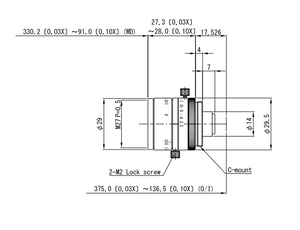

VS-LDA6.5 Technical Drawing (PDF)
