VS Technology VS-LDA20 2/3" 20mm F2.0 Manual Iris & Focus Distortionless Macro C-Mount Lens, 3 Megapixel Rated

SKU:
VS-LDA20
Availability:
Typically 2-4 days
Contact for quote
Current Stock:

VS Technology VS-LDA20 2/3" 20mm F2.0 Manual Iris & Focus Distortionless Macro C-Mount Lens, 3 Megapixel Rated



Format: 2/3"

Focal Length: 20 mm

Aperture: F2.0

Iris Type: Manual

Mount: C-Mount

Other Information:

The VS-LDA series generates a low distortion image, even when using extension tubes, by using a large number of lens shifts. Its design allows for the support of a wide range of magnification, WD, and DOF.



  • 1/2" - 2/3" sensor support
  • 10 models available
  • Focal length 4 - 75mm
  • Distortionless
  • Reduced Shading

Model

VS-LDA20

Focal Length(mm)

20

Optical mag. range

0.04x - 0.22x

WD(mm)

510.3 - 86.6

Working F/#

2.1 - 2.3

TV Distortion

-0.01% -0.17%

Sensor Size (max.)

2/3”



Downloads:


VS-LDA20 SpecSheet (PDF)

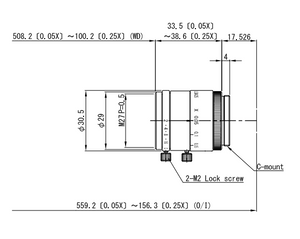

VS-LDA20 Technical Drawing (PDF)
