  • VS Technology VS-H2518-IRC/11 VS Technology 1.1" 25mm F1.8 Manual Iris C-Mount Lens, 20 Megapixel Rated (4K Ultra), 2.4um Pixels, IR Corrected

    Model #
    VST VS-H2518-IRC/11
    Availability
    Typically 7-10 days
    Shipping
    Calculated at checkout
    $0.00
    Quantity


    Technical Information

    VS Technology 1.1" 25mm F1.8 Manual Iris C-Mount Lens, 20 Megapixel Rated (4K Ultra), 2.4um Pixels, IR Corrected


    Format:  1.1"

    Focal Length:  25mm

    Aperture:  1:1.8

    Iris Type:  Manual (Lock Screw M2)

    Mount:  C-Mount



    Supports 20MP, 1.1", 2.4um and 4K resolution IR-Corrected to minimize focus shift from visible to NIR



    • 4K resolution
    • IR-Corrected, minimize focus shift from visible to NIR
    • Supports 20MP, 1.1" format and 2.4um pixel size
    • 3 focal length options, 12mm, 16mm and 25mm





    Specifications

    Focal Length (f) 25 mm
    Maximum Aperture Ratio 1:1.8
    F/# 1.8 ~ close
    Angle of view (1") 23.2° x 31.6° (Diagonal: 39.1°)
    M.O.D 300mm
    Flange back 17.526mm
    Operation of Iris & Focus Manual (Lock Screw M2)
    Mount C-mount
    Filter Thread M43 P=0.75
    Wavelength Visible ~ 850nm
    TV distortion (1.1") -0.99%
    Sensor size (max.) 1.1"
    Weight (approx.) 340 g
    Dimension Ø51 (MAX) x L = 109.5mm



    Downloads:


    VS-H2518-IRC/11 Spec Sheet (PDF)

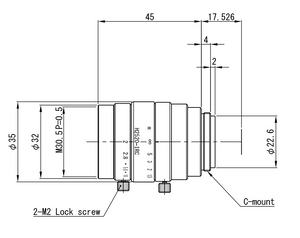

    VS-H2518-IRC/11 Technical Drawing (PDF)


    VS-H-IRC/11 Series Flyer (PDF)








    ← Back to VS Technology Lens Page
