  • VS Technology VS-50085/M42 4/3" 50mm F0.85 Manual Iris, M42 Mount Fixed Focal Length Lens

    Model #
    VST VS-50085/M42
    Availability
    Typically 2-4 days
    Shipping
    Calculated at checkout
    $0.00
    Quantity


    Technical Information

    VS Technology VS-50085/M42 4/3" 50mm F0.85 Manual Iris, M42 Mount Fixed Focal Length Lens

    Format: 4/3"

    Focal Length: 50 mm

    Aperture: F0.85–16

    Iris Type: Manual

    Mount: M42 Mount

    Other Information

    • The brightest CCTV lens in the MV market
    • Supports 4/3”8M cameras and M42 mount
    • Floating system ensures high performance at any magnification
    • Low Distortion & High Contrast

    VS-085 series allows faster shutter speeds and is capable for various applications which require brighter images. Including medical, bio and high speed motion analysis applications

    Specifications

    Focal Length (f) 50mm
    Maximum Aperture Ratio 1:0.85
    F/# F0.85 ~ F16
    Angle of view (4/3") 15.7° x 20.9° (Diagonal: 25.9°)
    M.O.D 240mm
    Flange back 19.53mm
    Operation of Iris & Focus Manual
    Mount M 42 P=1.0
    Filter Thread M 62 P=0.75
    TV distortion (4/3") -0.3%
    Sensor size (max.) 4/3"
    Weight (approx.) 620 g
    Dimension Ø 65 (MAX) x L = 79.5mm

    ※Maximum Aperture Ratio is 1:0.90 with C-mount customized






    Downloads:


    VS-50085/M42 Spec Sheet (PDF)

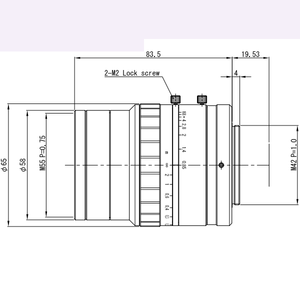

    VS-50085/M42 Technical Drawing (PDF)



    ← Back to VS Technology Lens Page
