VS Technology SV-03514V 1/2" 3.5mm F1.4 Manual Iris C-Mount Fixed Focal Length Lens, Megapixel Type

VST SV-03514V
Typically 2-4 days
Contact for quote
Current Stock:

VS Technology SV-03514V 2/3" 3.5mm F1.4 Manual Iris C-Mount Lens, Megapixel Type

Format: 1/2"

Focal Length: 3.5 mm

Aperture: F1.4–Close

Iris Type: Manual

Mount: C-Mount

Other Information

  • Support Industrial Machine Vision applications
  • Lock screws for Iris and Focus for all models
  • Designed for a wide range of machine vision applications by using an extension tube and a rear converter lens
Focal Length (f) 3.5mm
Maximum Aperture Ratio 1:1.4
F/# F1.4 - Close
Angle of view (1/2") 77.8° x 105.9° (Diagonal: 136.8°)
M.O.D 0.2m
Flange back 17.526mm
Operation of Iris & Focus Manual
Mount C-Mount
TV distortion (1/2") -14.7%
Sensor size (max.) 1/2"
Weight (approx.) 53 g
Dimension Ø 29.5 (MAX) x L = 30.5mm




SV-03514V Spec Sheet (PDF)

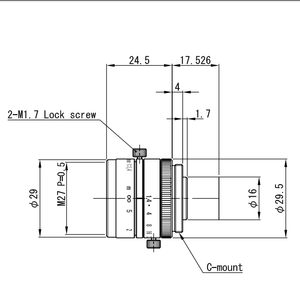

SV-03514V Technical Drawing (PDF)
