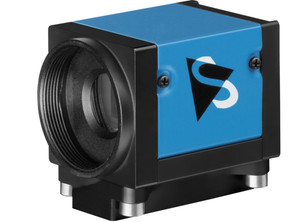

The Imaging Source DMK 33GX273 1/2.9" Progressive Scan Monochrome CMOS (IMX273) Camera, 1.6 Megapixels, 75 fps, GigE Output
$454.00
Featuring the latest low-noise CMOS and CCD sensor technology from Sony and onsemi, The Imaging Source's GigE Vision-compliant monochrome camera models offer a diverse portfolio of imaging solutions. The cameras' GigE interface allows for cable lengths up to 100m and multi-camera set ups while maintaining data rates of up to 100MB/s; the GigE Vision standard ensures rapid integration of hardware and image processing software, making the cameras ideal for applications in production, inspection und quality assurance. A variety of input, output, strobe and trigger options are available via the Hirose port. The newest "38 Series" cameras are optionally available with the ix Industrial® Ethernet interface or the standard RJ45 connector. The ix Industrial® Ethernet connector uses an integrated locking system to deliver high shock and vibration resistance in industrial environments.
- 1/2.9 inch Sony CMOS Pregius sensor (IMX273)
- 1,440×1,080 (1.6 MP), up to 75 fps
- Global shutter
- Trigger and I/O inputs
- Casing compatible to most analog cameras
- Manufactured by The Imaging Source
Specifications
| GENERAL BEHAVIOR | |
| Vision standard |  |
| Dynamic range | 12 bit |
| Resolution | 1,440×1,080 (1.6 MP) |
| Frame rate | 75 fps |
| Video output format | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| INTERFACE (OPTICAL) | |
| IR cut filter | |
| Sensor type | CMOS Pregius |
| Sensor specification | Sony IMX273LLR |
| Shutter | global |
| Format | 1/2.9 inch |
| Pixel size | H: 3.45 µm, V: 3.45 µm |
| Lens mount | C/CS |
| INTERFACE (ELECTRICAL) | |
| Interface | GigE |
| Supply voltage | 11 VDC to 13 VDC or POE: 48 VDC to 56 VDC |
| Current consumption | approx 400 mA @ 12 VDC |
| Auto iris control | |
| Trigger | |
| I/Os | |
| INTERFACE (MECHANICAL) | |
| Dimensions | H: 29 mm, W: 29 mm, L: 57 mm |
| Mass | 65 g |
| ADJUSTMENTS | |
| Shutter | 1 µs to 30 s |
| ENVIRONMENTAL | |
| Temperature (operating) | -5 °C to 45 °C |
| Temperature (storage) | -20 °C to 60 °C |
| Humidity (operating) | 20 % to 80 % (non-condensing) |
| Humidity (storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
