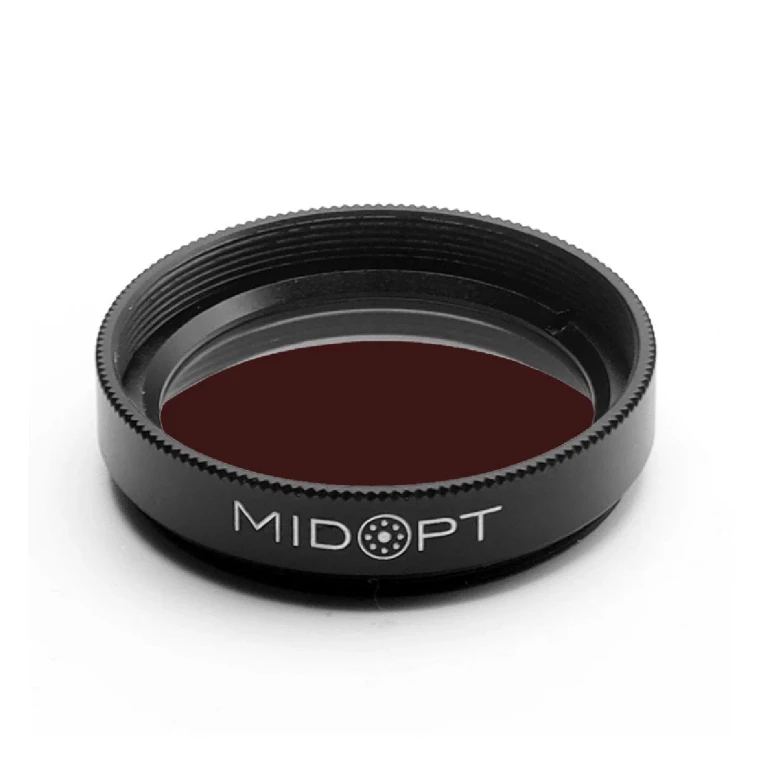

Midwest Optical DB735 Dual Bandpass Filter Visible + 735nm NIR, 405-645nm, 725-755nm Range

SKU:
MWO DB735
Availability:
Typically 2-5 days
Contact for quote
Current Stock:

DB735 filters pass visible light and 735-740nm LED light. These filters allow maintenance of excellent color rendition while taking advantage of any camera’s significantly higher spectral response at lower near-infrared wavelengths.Useful for license plate recognition, traffic control, surveillance and machine vision applications.

  • Useful Range : 405-645nm, 725-755nm
  • FWHM : 250nm, 50nm
  • Tolerance : +/- 20nm
  • Peak Transmission : ≥90%
  • Surface Quality : 40/20
  • Compatible LED : 740nm



Note: Midwest Optical filters are considered to be special order items and are thus not returnable.



Download Datasheet:
