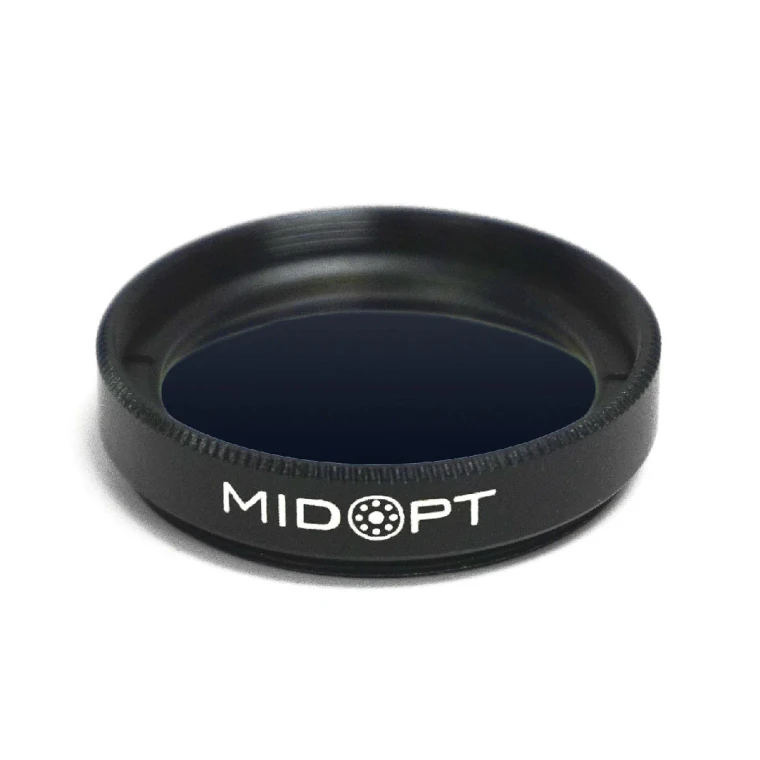

  • Midwest Optical BP324 Near-UV Bandpass Filter, 290-365nm Range, With StablEDGE

    Model #
    MWO BP324
    Availability
    Typically 2-5 days
    Shipping
    Calculated at checkout
    $0.00
    Quantity


    Technical Information

    Useful in UV imaging applications, BP324 filters have a broad spectral bandwidth in the UV while effectively blocking most visible and infrared light. Note that there is a slight deep red/near IR leak that peaks at about 720nm. Because this filter absorbs all unwanted visible and/or infrared light, it is not recommended for placement in front of intense (white) light sources.

    • Passes UV portions 320-380 nm and 280-320nm
    • Blocks < 280 nm
    • Configurations can also be supplied for mounting in front of UV LED light sources
    • Useful Range : 290-365nm
    • FWHM : 105nm
    • Tolerance : +/- 10nm
    • Peak Transmission : ≥90%
    • Surface Quality : 40/20



    Note: Midwest Optical filters are considered to be special order items and are thus not returnable.



    Download Datasheet:
