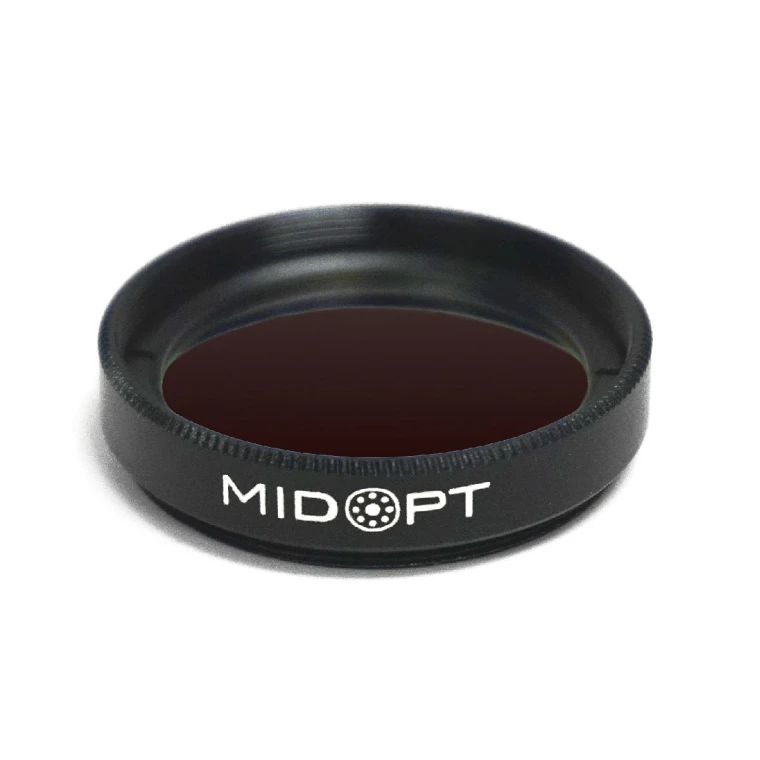

Midwest Optical BN850 Narrow Near-IR Bandpass Filter, 840-865nm Range, with StablEDGE

SKU:
MWO BN850
Availability:
Typically 2-5 days
Contact for quote
Current Stock:

These filters are available for use in conjunction with commonly used IR illuminators operating at or around the 850nm wavelength. BN850 filters feature a narrow band design that is ideal for use when ambient light conditions create poor contrast. They are commonly used in security, traffic control, LPR and industrial inspection applications.

*Not available in 1mm thickness or 25.4™ C-Mount option. For filters thicker than 1mm, we offer an alternative mounting solution that has an overall thickness of 5.5mm. This mount can accommodate filters up to 3.5mm thick. For this alternative C-Mount option, click here.

  • Useful Range : 840-865nm
  • FWHM : 45nm
  • Tolerance : +/- 7nm
  • Peak Transmission : ≥85%
  • Surface Quality : 40/20
  • Compatible LED : 840nm, 850nm



Note: Midwest Optical filters are considered to be special order items and are thus not returnable.



Download Datasheet:
