Midwest Optical AC370 A/R Acrylic Protective Window, 380-850nm Range, With StablEDGE

SKU:
MWO AC370
Availability:
Typically 2-5 days
Contact for quote
Current Stock:

AC370 is a 1mm thick abrasion, scratch, breakage and solvent resistant acrylic protective window made to withstand harsh environments. It is half the weight of comparable glass windows and additionally features external oleophobic coatings that curb fingerprint smudging. The vacuum-sputtered coatings on both surfaces are 50 times more scratch resistant than untreated acrylic, far more durable than standard “dip” coatings, and are impervious to all types of solvents, fuels and other chemicals, including acetone, methylene chloride and MEK.

This material blocks almost all UV light while averaging greater than 98% transmission over the 450-700nm visible spectrum. This protection acrylic window is a highly effective yet economical solution for covering screens, camera enclosures and on-axis lighting modules. It is often recommended for FDA/EFSA applications where thickness is a concern and the use of glass is not permitted.

AC370 is available from stock in larger sheets with protective tape on both surfaces. Custom sizes and shapes are quickly laser cut in house. Next day shipping is the norm.

*For 2 or 3mm thick material, please see AC380.

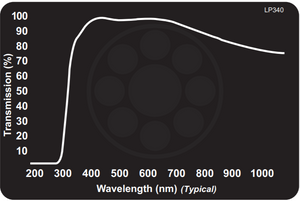

  • Useful Range : 380-850nm
  • Cut-on Wavelength 50% T : 370nm
  • Tolerance : +/- 10nm
  • Peak Transmission : ≥98%
  • Surface Quality : 80/50



Note: Midwest Optical filters are considered to be special order items and are thus not returnable.



Download Datasheet:
