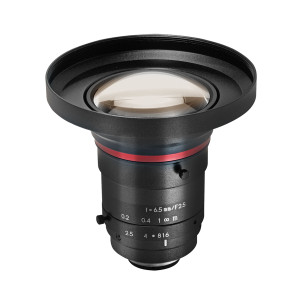

  • Kowa LM6FC 1.1" 6.5mm F2.5 Manual Iris C-Mount Lens, Low Distortion, Wide-Band Coating For NIR Sensitivity, 12 Megapixel Rated

    Model #
    KOW LM6FC
    Availability
    Typically 2-4 days
    Shipping
    Calculated at checkout
    $1,237.00
    Quantity


    Technical Information

    Kowa 1.1" 6.5mm F2.5 Manual Iris C-Mount Lens, Low Distortion, Wide-Band Coating For NIR Sensitivity, 12 Megapixel Rated

    Format: 1.1"

    Focal Length: 6.5mm

    Aperture: F2.5

    Iris Type: Manual Iris

    Mount: C-Mount Lens

    Product Information LM6FC

    1.1" C-Mount lens
    17.6mm Image circle
    12 Megapixel high resolution
    Metal housing
    Metal mount
    Locking screws for iris and focus


    Focal Length (mm): 6,5
    Sensor Size: 1.1"
    Pixel Size (µm): 3,1
    Mount: C-mount
    Iris Control: Manual
    Iris Range (F-Stop): 2,5 - 16
    Lens Type: Fixed Focal Lens
    Wavelength Range: VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm)
    Focusing Range (m): 0,1 - ∞
    Focus Control: Manual
    Shooting range at MOD, horizontal (mm): 256
    Shooting range at MOD, vertical (mm): 190
    Resolution, Center: 160
    Resolution, Corner: 100
    Distortion (TV) (%): -1,51
    Back focus in air (mm): 10,9
    Filter Size (mm): M82 x P0,75
    Size (mm): Ø84 X 79,1
    Weight (g): 310
    Temperature Range (℃): -10°C - +50°C
    Series: FC
    Application: ITS, Broadcast, Machine Vision



    Datasheet Download:


    LM6FC Datasheet




    FC Series Brochure
