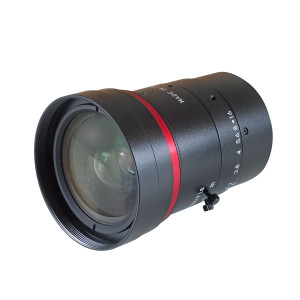

Kowa LM12FC24M 1.1" 12mm F1.8 Manual Iris C-Mount Lens, Low Distortion, Wide-Band Coating For NIR Sensitivity, 24 Megapixel Rated

SKU:
KOW LM12FC24M
Availability:
Typically 2-4 days
$759.00
Current Stock:
Product Information LM12FC24M | 1.1" 12mm 24MP C-Mount Lens
  • 1.1" 24 Megapixel C-mount Industrial Lens
  • Focal length 12mm
  • For sensors with a pixel size from 2.5μm
  • Suitable for Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more
  • Floating mechanism to eliminate optical aberrations
  • Broadband Coating: Transmission from VIS to NIR

Technical Details

Focal Length (mm): 12
Sensor Size: 1.1"
Pixel Size (µm): 2,5
Mount: C-mount
Iris Control: Manual
Iris Range (F-Stop): 1,8 - 16
Lens Type: Fixed Focal Lens
Wavelength Range: VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm)
Focusing Range (m): 0,1 - ∞
Focus Control: Manual
Shooting range at MOD, horizontal (mm): 135
Shooting range at MOD, vertical (mm): 101
Resolution, Center: 200
Resolution, Corner: 100
Megapixel: 24
Distortion (TV) (%): 0,26
Back focus in air (mm): 14,5
Filter Size (mm): M49 x P0,75
Size (mm): Ø51 X 73,8
Weight (g): 260
Temperature Range (): -10°C - +50°C
Series: FC24M
Application: Broadcast, Machine Vision, ITS/Verkehrsüberwachung







Downloads:

Datasheet

Distortion

MTF

Relative Illumination

Transmission



FC24M Series Brochure
