WORLDWIDE DISTRIBUTOR OF INDUSTRIAL VIDEO PRODUCTS RMA Electronics

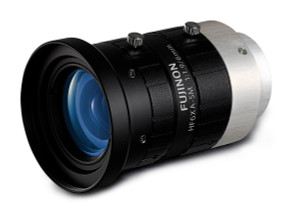

  • Fujinon HF8XA-5M 2/3" 8mm F1.6 Manual Iris C-Mount Lens, Compact Size, Low Distortion, 5 Megapixel Rated (for 3.45 Micrometer Pixel Pitch)

    Model #
    FUJ HF8XA-5M
    Availability
    Typically 2-3 Days
    Shipping
    Calculated at checkout
    $288.00
    Quantity


    Technical Information

    Fujinon HF8XA-5M 2/3" 8mm F1.6 Manual Iris C-Mount Lens, Compact Size, Low Distortion, 5 Megapixel Rated (for 3.45 Micrometer Pixel Pitch)

    Format: 2/3"

    Focal Length:  8mm

    Aperture: F1.6

    Iris Type: Manual

    Mount: C-Mount








    LEARN ABOUT FUJINON'S 4D HIGH RESOLUTION LENS TECHNOLOGY





    Additional Information

    The FUJINON HF-XA-5M series features “4D High Resolution”**, which mitigates resolution degradation even when changing a working distance or aperture value. The lenses' compact design accommodates installation at a variety of conditions at production lines. The series is available in six models of various focal lengths, allowing users to choose the optimum model according to their usage.

    Focal length in mm 8mm
    Aperture range (F no.) F1.6-F16
    Angle of view (H x V) 58.4°×44.6°
    Focus range ∞‐100
    Operation method manual
    Filter thread M25.5 × 0.5
    Mount C
    Compatible sensor size (max.) 2/3-inch
    TV distortion (%) -2.0
    External diameter (mm) φ29.5×51.5



    Downloads:


    HF8XA-5M Spec Sheet (PDF)


    HF8XA-5M Technical Drawing (PDF)


    HFXA-5M Series Operations Manual (PDF)





    ← Back to Fujinon Lens Page
