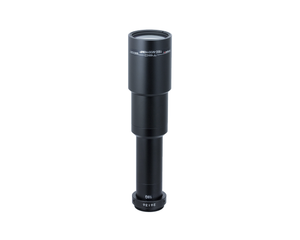

  • Computar TEC-M30110MPC 2/3" Telecentric C-Mount Lens, 3.0X, WD=110mm, 2 Megapixel Rated, Coaxial Type

    $879.00
    Quantity


    Technical Information

    Computar TEC-M30110MPC 2/3" Telecentric C-Mount Lens, 3.0X, WD=110mm, 2 Megapixel Rated, Coaxial Type

    • Magnification 3.0X
    • Compatible with 2MP sensors on 2/3 " cameras
    • Designed for 114.4mm working distance
    • C‐Mount, Coaxial type
    • Coaxial lighting capability
    • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)

    TEC-M30110MPC SPECIFICATIONS



    Model No. TEC-M30110MPC NA 0.094
    Magnification 3.0X TV Distortion | 2/3 type 0.008%
    Working Distance 111.4mm Back Focal Length 17.0mm
    Effective F Number 16.0 Flange Back Length 17.526mm
    Max. Image Format φ12.8mm Mount C-Mount
    Control: Iris - Filter Size -
    Field of View 2.93mm(H) x 2.2mm(V) 2/3" Dimensions φ35mm x 144mm
    Resolving Power *1 3.6µm Weight 166g
    Depth of Field *2 0.14mm Operating Temperature 0℃ - +40℃

    Download Specification Sheet:
