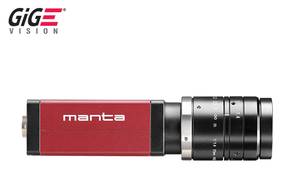

AVT Manta G-158C 1/2.9" Progressive Scan Color CMOS (Sony IMX273) Camera, 1.58 Megapixels, 1456 x 1088, 75 fps, GigE Output

Model #
AVT Manta G-158C
Availability
Typically Stock - 2 Weeks
Shipping


Technical Information


AVT Manta G-158C 1/2.9" Progressive Scan Color CMOS (Sony IMX273) Camera, 1.58 Megapixels, 1456 x 1088, 75 fps, GigE Output

Resolution: 1456 x 1088

Sensor Size: Sony IMX273

Output: GigE

Color/Monochrome: Color

GigE Vision camera featuring the Sony IMX273 CMOS sensor

Manta G-158 is a 1.58 Megapixel machine vision camera with a GigE compliant Gigabit Ethernet port and Hirose I/O port. Manta G-158 incorporates the high quality Type 1/2.9 (6.3 mm diagonal) Sony IMX273 CMOS sensor with Pregius global shutter technology. The Sony IMX273 CMOS sensor provides high frame rates with excellent picture quality. The Manta G-158 is offered in monochrome and color models. At full resolution, this camera achieves 75.3 frames per second. With a smaller region of interest, higher frame rates are possible. The Manta G-158 is an ideal replacement for legacy CCD models.

Manta is one of Allied Vision's versatile GigE Vision cameras with a wide range of features. Particular highlights are the three look-up tables, sophisticated color correction capabilities, a robust metal housing, and many modular options.  By default monochrome models ship with protection glass B 270 (ASG) and color models ship with an IRC Hoya C-5000 IR cut filter.



Benefits and features:

  • Monochrome (G-158B) and color (G-158C) models
  • GigE Vision interface with Power over Ethernet option
  • Screw mount RJ45 Ethernet connector for secure operation in industrial environments
  • Supports cable lengths up to 100 meters (CAT-5e or CAT-6)
  • Trigger over Ethernet (ToE) Action Commands allow for a single cable solution to reduce system costs
  • Comprehensive I/O functionality for simplified system integration
  • Easy camera mounting via standard M3 threads on top and bottom of housing
  • Support for popular third party image-processing libraries including Cognex VisionPro, MathWorks MATLAB, National Instruments LabVIEW, Stemmer Imaging Common Vision Blox, MVTec HALCON and MERLIC



Downloads:


AVT Manta G-158C Datasheet
